Gas Interlock Systems cut off gas flow in the event of kitchen extract fan failure. This is now a mandatory requirement in most commercial kitchens.
Sensors placed either side of the ductwork fan monitor air pressure. They are connected to an air differential switch which is activated when the pressure difference changes. Alternatively, the current taken by the fan can be monitored by a fan power sensor. The 230V GIS monitors this switch/sensor and in the event of fan failure will close the gas solenoid and cut off the gas flow to kitchen appliances.
When is a Gas interlock system a mandatory requirement?
- - On installation of a completely new exctraction/ventilation canopy.
- - On installation of a completely new gas pipework run
- - On installation of a completely new cook line or layout
- - With any fitting of Category 'B' equipment e.g. combination ovens, deep fryers, grills, charcoal griddles. This includes replacements to an existing layout.
Important documents/notes for your consideration and reference:
- - Corgi technical bulletin - TB 130 BS 6173
- - Gas Supply (installation and Use) regulation GSIUR27-4
- - HSE Information sheet No. 23 - Gas Safety in Catering and Hospitality
- - HSE CIS Sheet No. 10 - (Rev. 1)

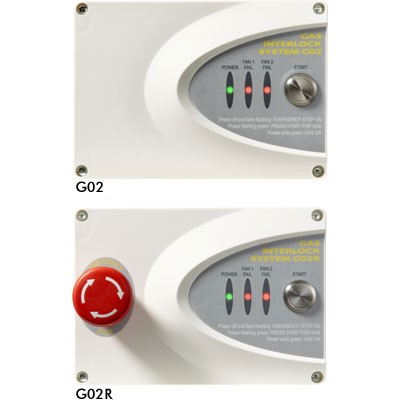

GIS G02, G02(R), G03, G03(R) Controllers
- - Most popular models
- - Option of a built in emergency shop
Key Points:
- - Smartest and most compact design on the market
- - Each model can monitor 2 fans at once
- - Anti Back pressure feature on all models
- - Easy to clean and protected to IP56
- - Manufactured in the UK and CE Marked
- - Two year parts guarantee
Features:
- - Competitively priced
- - Optional emergency stop button
- - Larger back box allows easy access wiring
- - The G03 Models twin sensor allows cooking to continue while an engineer is called out
- - Important: G03 MUST be fitted with 2 sensors per fan; Therefore, 4 sensors are needed for 2 fans
- - G02 - GIS single sensor
- - G02R - GIS single sensor with a built in emergency cut-off
- - G03 - GIS Twin Sensor
- - G03R - GIS Twin Sensor with a built in emergency cut-off
